I/P Cluster: Installation

  1. Install I/P cluster into I/P housing ensuring that the cluster harness is connected. Install and tighten fasteners. Tighten I/P cluster trim plate-to-I/P housing fasteners to 2.5 N.m (22 in-lbs).

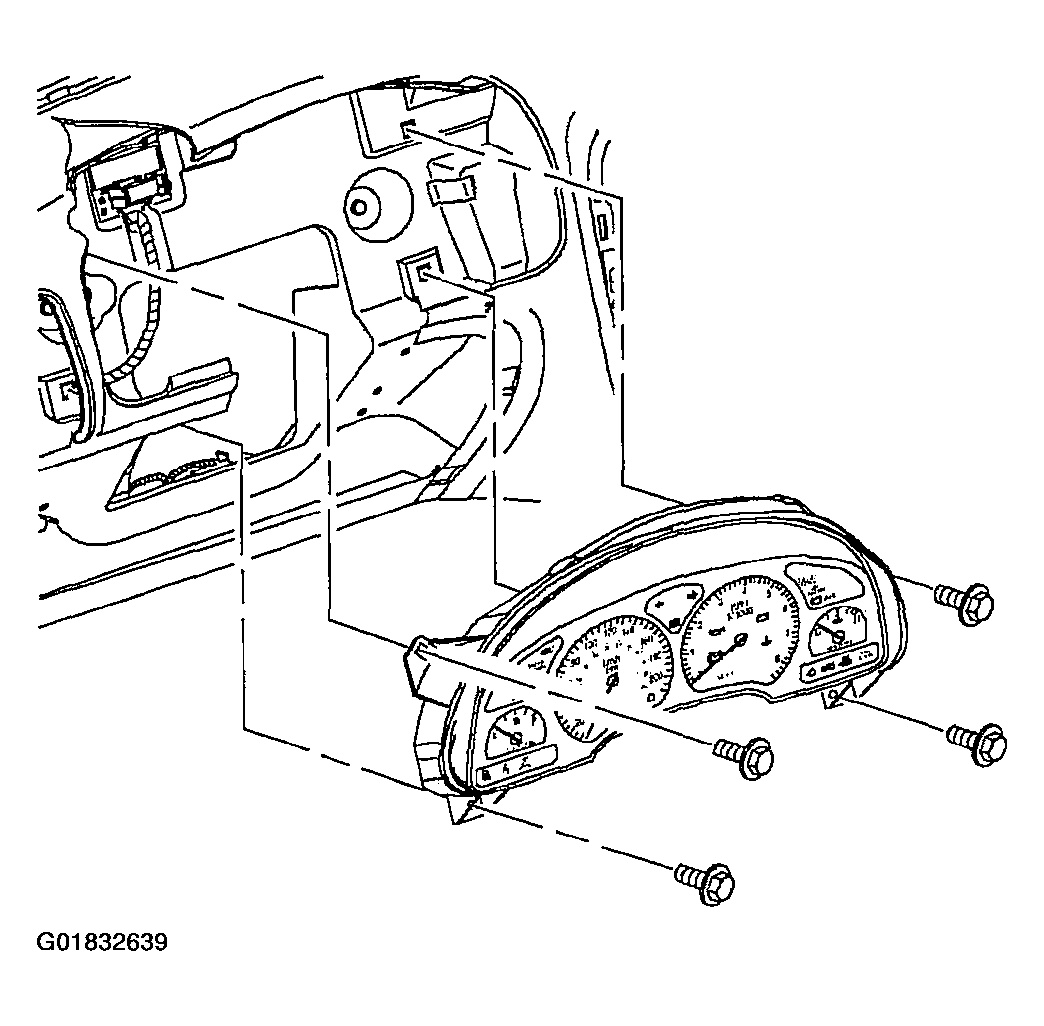

    2. Fig 1: Installing I/P Cluster
    G01832639Courtesy of GENERAL MOTORS CORP.
  2. Install I/P cluster trim plate. Refer to I/P CLUSTER TRIM PLATE  procedure.

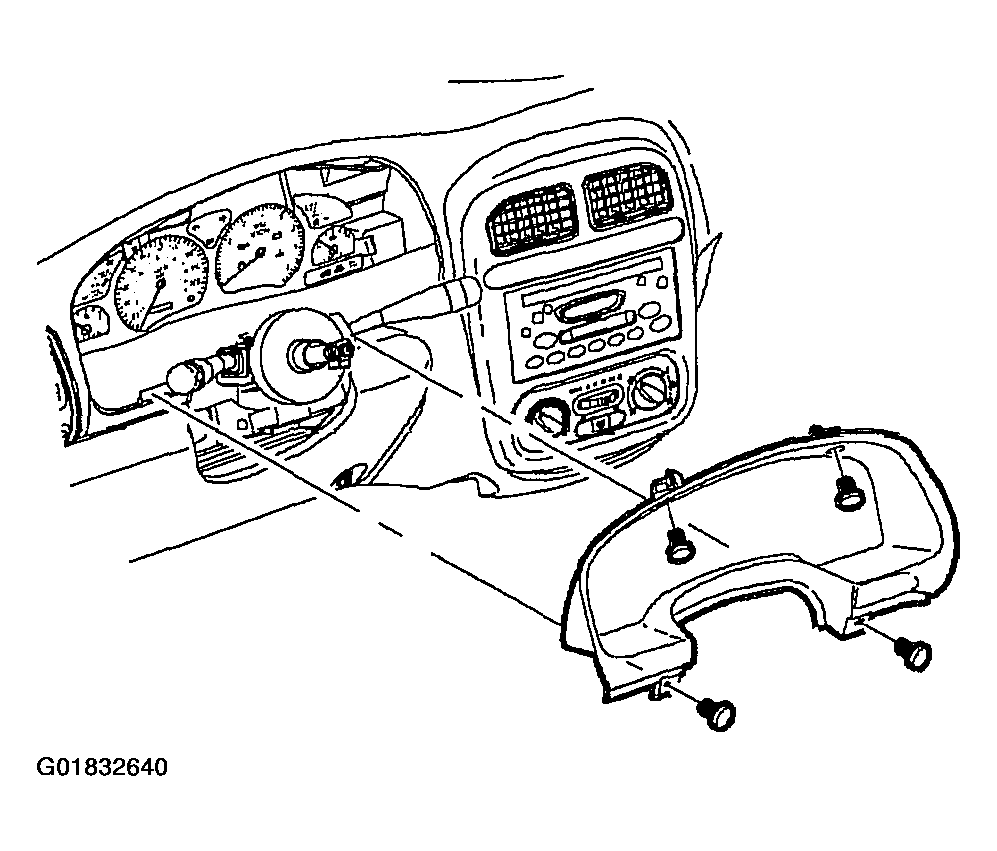

    3. Fig 2: Installing I/P Cluster Trim Plate
    G01832640Courtesy of GENERAL MOTORS CORP.
  3. Enable the SIR System. Refer to ACTIVATING SYSTEM procedure.
