Tire Pressure Indicator Receiver Replacement

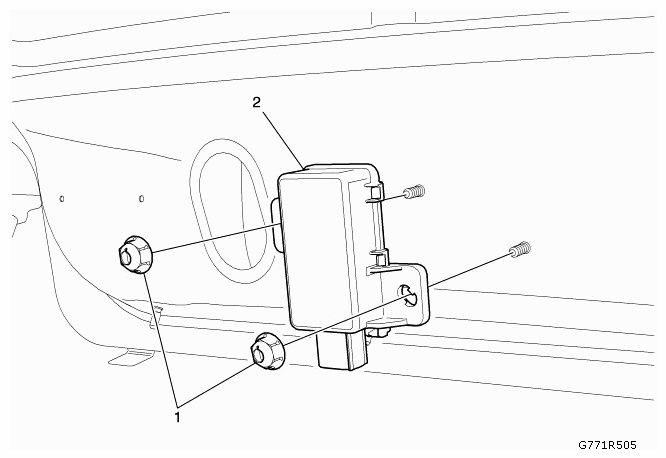

Fig 1: Removing Tire Pressure Indicator Receiver And Fastener

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure  Remove the 2 center clips on the lower part of the rear bumper. Refer to REAR BUMPER FASCIA REPLACEMENT .
1	Tire Pressure Indicator Receiver Fastener (Qty: 2) Refer to FASTENER CAUTION . Tighten  4 Nm (35 lb in)
2	Tire Pressure Indicator Receiver Procedure  Disconnect any electrical connectors as needed. After repairs, program the tire pressure monitoring system. Refer to CONTROL MODULE REFERENCES .
