Rear Bumper Fascia Replacement

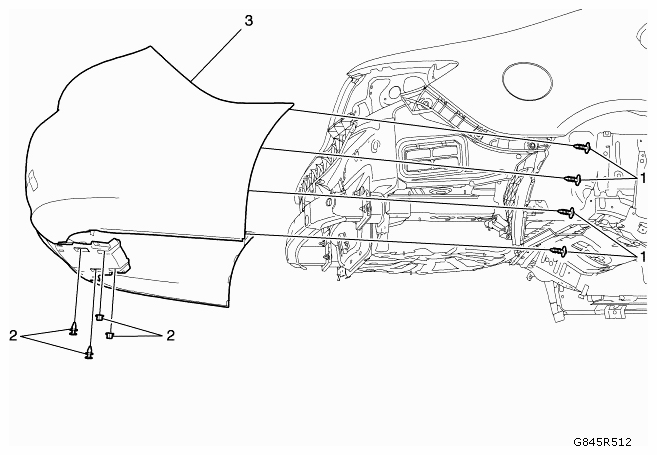

Fig 1: Identifying Rear Bumper Fascia, Fastener And Retainer

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure Remove the tail lamp. Refer to TAIL LAMP REPLACEMENT .
1	Rear Bumper Fascia Fastener (Qty: 8) Refer to FASTENER CAUTION . NOTE: Reach underneath the wheelhouse to access the fastener.
2	Rear Bumper Fascia Retainer (Qty: 4)
3	Rear Bumper Fascia Procedure Disconnect any electrical connectors as needed. Pull gently on the sides of the rear bumper fascia to disengage from the rear quarter panels. Transfer any parts as needed.
