Driver or Passenger Seat Belt Retractor Replacement

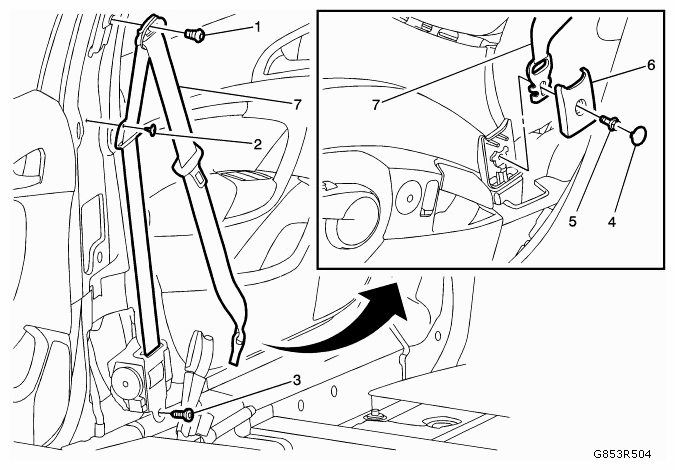

Fig 1: Driver/Passenger Seat Belt Retractor

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Refer to SIR WARNING . WARNING: In order to prevent accidental deployment and the risk of personal injury, do not dispose of an undeployed inflator module as normal shop waste. Undeployed inflator modules contain substances that could cause severe illness or personal injury if their sealed containers are damaged during disposal. Use the following deployment procedures to safely dispose of an undeployed inflator module. Failure to observe the following disposal methods may be a violation of federal, state, or local laws. Preliminary Procedure  Disable the SIR. Refer to SIR DISABLING AND ENABLING . Remove the front and rear side door sill trim plate. Refer to FRONT AND REAR SIDE DOOR SILL TRIM PLATE REPLACEMENT . Remove the center pillar lower trim panel. Refer to CENTER PILLAR LOWER TRIM PANEL REPLACEMENT . Remove the center pillar upper trim panel. Refer to CENTER PILLAR UPPER GARNISH MOLDING REPLACEMENT .
1	Front Seat Belt Retractor Guide Fastener Refer to FASTENER CAUTION . Tighten  45 Nm (33 lb ft)
2	Front Seat Belt Retractor Guide Retainer
3	Front Seat Belt Retractor Fastener Procedure  Disconnect the electrical connector. Tighten  45 Nm (33 lb ft)
4	Front Seat Belt Tensioner Cover Bolt Cover
5	Front Seat Belt Tensioner Cover Bolt Tighten  5 Nm (44 lb in)
6	Front Seat Belt Tensioner Cover
7	Front Seat Belt Retractor
