Center Pillar Upper Garnish Molding Replacement

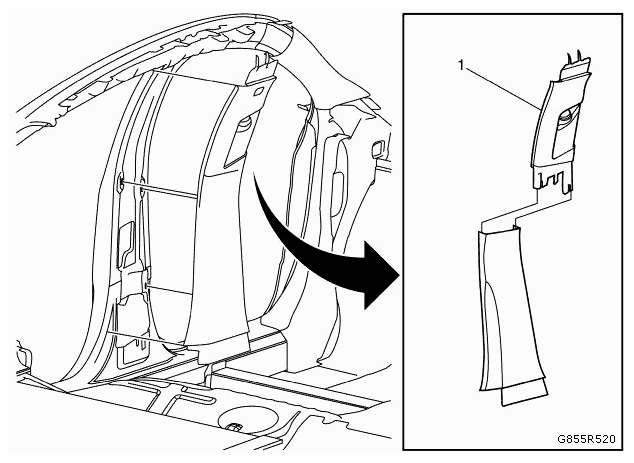

Fig 1: Identifying Center Pillar Upper Garnish Molding

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure  Release the front seat belt retractor. Refer to DRIVER OR PASSENGER SEAT BELT RETRACTOR REPLACEMENT . Remove the front and rear side door sill trim plate. Refer to FRONT AND REAR SIDE DOOR SILL TRIM PLATE REPLACEMENT . Move seat to full forward position.
1	Center Pillar Upper Garnish Molding Procedure  Remove the center pillar lower/upper garnish molding assembly. Release the locking retainer on the rear side of the center pillar upper garnish molding.
