Sun Load Temperature and Headlamp Automatic Control Ambient Light Sensor Replacement

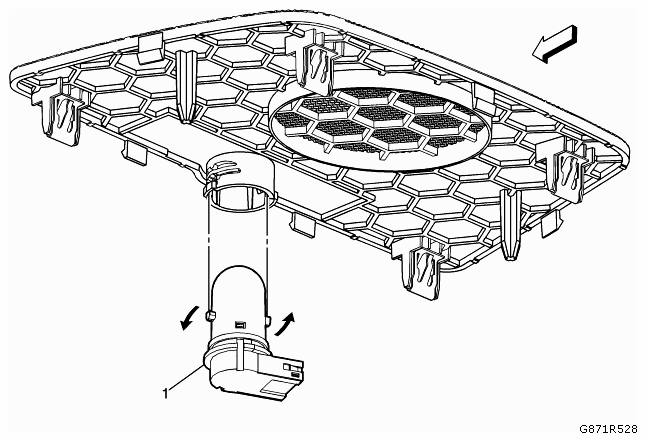

Fig 1: Removing Sun Load Temperature And Headlamp Automatic Control Ambient Light Sensor

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure  Remove the front radio speaker grille. Refer to RADIO FRONT SPEAKER GRILLE REPLACEMENT
1	Sun Load Temperature and Headlamp Automatic Control Ambient Light Sensor Procedure  Disconnect the electrical connector. Twist the sensor counterclockwise to remove.
