Ambient Air Temperature Sensor Replacement

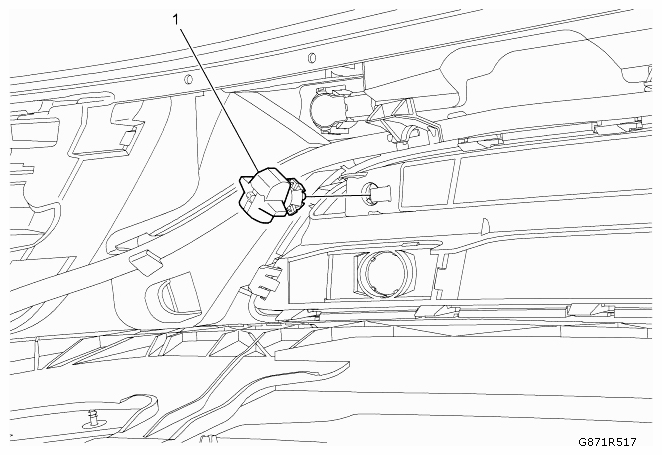

Fig 1: Identifying Ambient Air Temperature Sensor
G09435895Courtesy of SAAB-SCANIA OF AMERICA, INC.
Callout Component Name
Preliminary Procedure
Remove the splash shield on the left side. Refer to FRONT COMPARTMENT SPLASH SHIELD REPLACEMENT .
1 Ambient Air Temperature Sensor
Procedure
Disconnect the electrical connector.
