Front Compartment Splash Shield Replacement

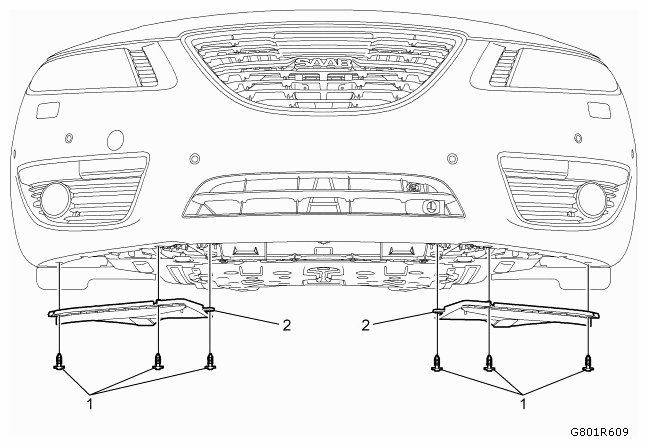

Fig 1: Removing Front Compartment Splash Shield And Fastener

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure  Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
1	Front Compartment Splash Shield Fastener (Qty: 3) Refer to FASTENER CAUTION . Tighten  3 Nm (27 lb in)
2	Front Compartment Splash Shield
