Throttle Body Assembly Replacement

WARNING: This page is about a different variant/trim than selected.

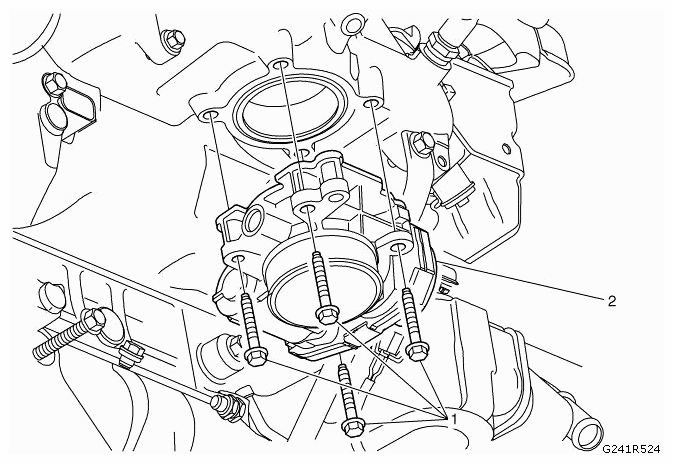

Fig 1: Disconnecting Throttle Body And Fastener

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure Disconnect the battery negative cable. Refer to BATTERY NEGATIVE CABLE DISCONNECTION AND CONNECTION . Release the charge air cooler outlet pipe. Refer to CHARGE AIR COOLER OUTLET AIR HOSE REPLACEMENT .
1	Throttle Body Assembly Fastener (Qty: 4) Refer to FASTENER CAUTION . Tighten 10 Nm (89 lb in)
2	Throttle Body Procedure Disconnect the electrical connector.
