Charge Air Cooler Outlet Air Hose Replacement

WARNING: This page is about a different variant/trim than selected.

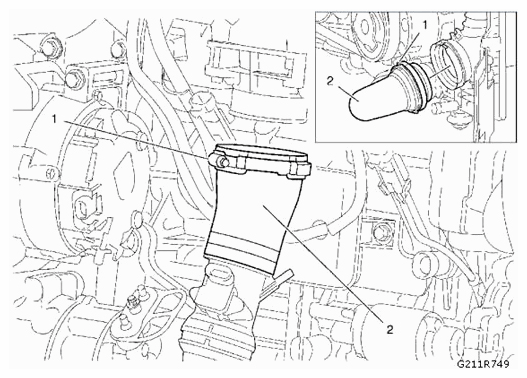

Fig 1: Identifying Charge Air Cooler Outlet Air Hose And Retainer

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure Remove the front bumper fascia. Refer to FRONT BUMPER FASCIA REPLACEMENT .
1	Charge Air Cooler Outlet Air Hose Retainer (Qty: 2) Procedure Disconnect the electrical connector. Clean all sealing surfaces of any contamination.
2	Charge Air Cooler Outlet Air Hose
