Front Bumper Fascia Replacement

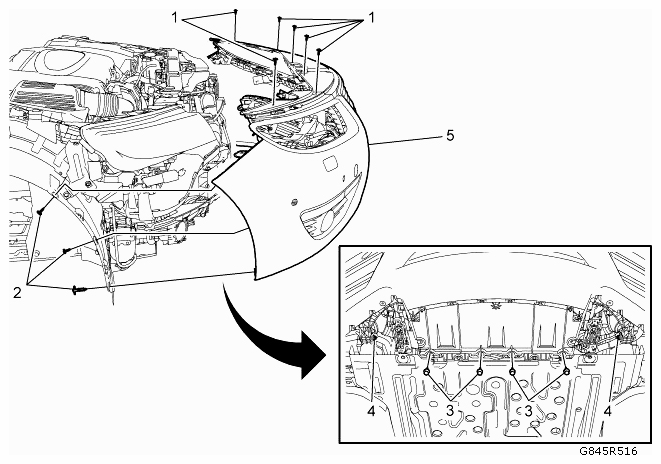

Fig 1: Identifying Front Bumper Fascia Components

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure Remove the splash shields. Refer to FRONT COMPARTMENT SPLASH SHIELD REPLACEMENT . A20NFT/LHU Bio Power: Disconnect engine heater cable and ground cable. NOTE: Cover the head lamps to avoid scratches.
1	Front Bumper Fascia Fastener (Qty: 6)
2	Front Bumper Fascia Fastener (Qty: 6)
3	Front Bumper Fascia Plastic Retainer (Qty: 4)
4	Front Bumper Fascia Fastener (Qty: 2) Refer to FASTENER CAUTION . Procedure Loosen the fastener to release the fascia. Tighten 25 Nm (18 lb ft)
5	Front Bumper Fascia Procedure Disconnect any electrical connectors. Disconnect hose to headlight nozzle if needed. Plug the hose. Transfer components as necessary. NOTE: Be careful in the headlight area. The headlight molding comes off with the fascia.
