Accessory AC and DC Power Control Module Replacement

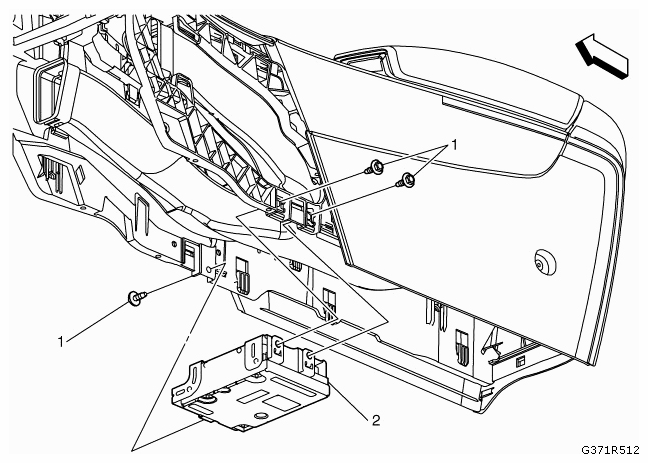

Fig 1: Removing AC And DC Power Control Module Replacement

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
WARNING: The high intensity discharge system produces high voltage and current. In order to reduce the risk of severe shocks and burns, the battery negative cable must be disconnected any time service work is being performed on or around the high intensity discharge system. Preliminary Procedure  Disconnect the battery negative cable. Refer to BATTERY NEGATIVE CABLE DISCONNECTION AND CONNECTION . Remove the front floor console. Refer to FRONT FLOOR CONSOLE REPLACEMENT .
1	Accessory AC and DC Power Control Module Fastener (Qty: 3)
2	Accessory AC and DC Power Control Module Procedure  Disconnect the electrical connector. Transfer any parts as needed. Program the accessory AC and DC power control module. Refer to CONTROL MODULE REFERENCES for programming and set up.
