Front Floor Console Replacement

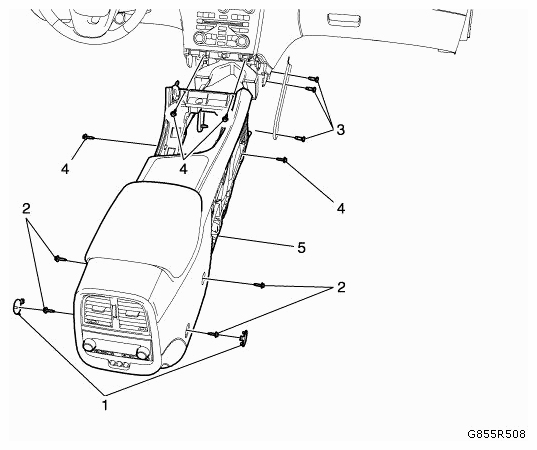

Fig 1: Exploded View Of Front Floor Console
G09435835Courtesy of SAAB-SCANIA OF AMERICA, INC.
Callout Component Name
Preliminary Procedure
  1. Remove front floor console extension panel, left side and right side. Refer to FRONT FLOOR CONSOLE EXTENSION PANEL REPLACEMENT .
  2. Remove the front floor console cover. Refer to FRONT FLOOR CONSOLE COVER REPLACEMENT .
  3. Remove floor console rear cover. Refer to FRONT FLOOR CONSOLE REAR COVER REPLACEMENT .
  4. Disconnect any electrical connectors as needed.
  5. For removing the front floor console fastener move the front seats into the necessary position.
1 Front Floor Console Fastener Cover
2 Front Floor Console Rear Fastener (Qty: 4)
Refer to FASTENER CAUTION .
Tighten
2, 3 Nm (20 lb in)
3 Instrument Panel Tie Bar Fastener (Qty: 3)
Procedure
Remove tie bar to get access to electrical connector.
Tighten
22 Nm (16 lb ft)
4 Front Floor Console Front Fastener (Qty: 4)
5 Front Floor Console
