Driver Information Display Replacement (UDT)

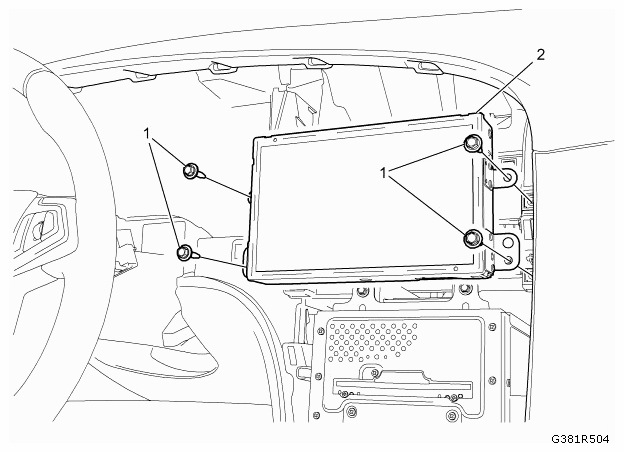

Fig 1: Identifying Driver Information Display With Fasteners

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure  Disconnect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECTION AND CONNECTION . Remove the Instrument panel upper trim panel. Refer to INSTRUMENT PANEL UPPER TRIM PANEL REPLACEMENT .
1	Driver Information Display Fastener (Qty: 4) See FASTENER CAUTION .
2	Driver Information Display Procedure  Disconnect the electrical connection. For programming and set up information, refer to CONTROL MODULE REFERENCES .
