Driver Information Display Replacement (UAG/UFD)

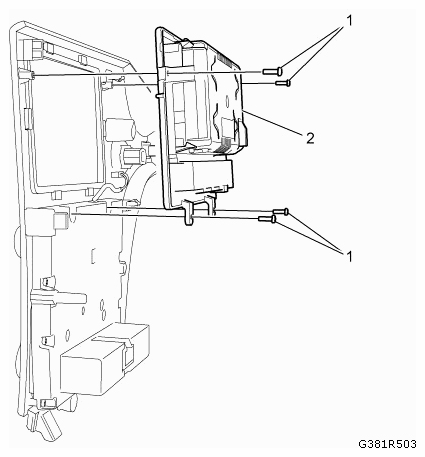

Fig 1: Identifying Driver Information Display With Fasteners

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure  Disconnect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECTION AND CONNECTION . Remove the instrument panel lower center trim panel. Refer to INSTRUMENT PANEL LOWER CENTER TRIM PANEL REPLACEMENT .
1	Driver Information Display Fastener (Qty: 4) See FASTENER CAUTION .
2	Driver Information Display Procedure  Remove the driver information display from the instrument panel upper center trim panel. Disconnect the electrical connection. For programming and set up information, refer to CONTROL MODULE REFERENCES .
