Instrument Panel Lower Center Trim Panel Replacement

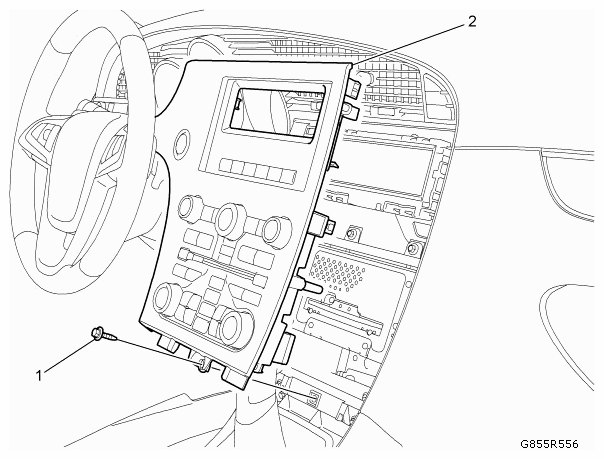

Fig 1: Identifying Instrument Panel Lower Center Trim Panel And Fastener

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure  Remove the front floor console cover. Refer to FRONT FLOOR CONSOLE COVER REPLACEMENT .
1	Instrument Panel Lower Center Trim Panel Fastener Refer to FASTENER CAUTION .
2	Instrument Panel Lower Center Trim Panel Procedure  Use a flat-bladed plastic trim tool in order to release the retaining clips securing the upper center trim panel to the instrument panel. Disconnect the electrical connectors. If replacing the lower center trim panel, transfer parts as necessary. NOTE: Apply protecting tape on the upper right corner between the Lower Center Trim Panel and Instrument Panel Upper Trim Panel to prevent paint peel of.
