Parking Brake Rear Cable Replacement (J71)

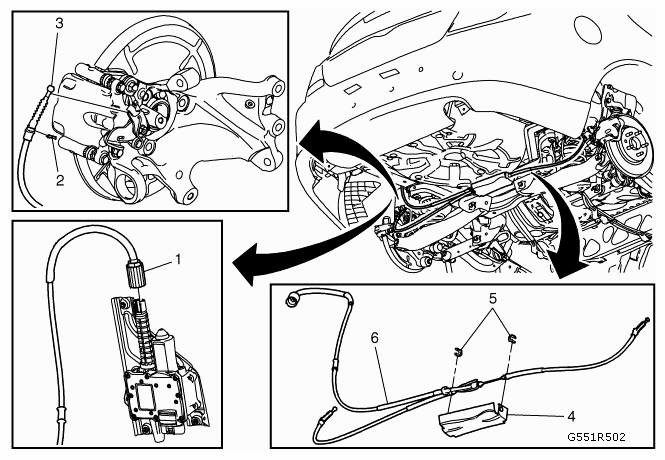

Fig 1: Identifying Electric Park Brake Module Cable, Protector Parking Brake Cable And Retainer Washer

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure Release the electric parking brake. 1.1. Set ignition in Run mode and put your foot on top of the service brake. 1.2. Press the parking brake switch down and hold for 5 seconds, then a solid yellow telltale is shown on instrument panel. 1.3. Press the parking brake switch again within 5 seconds, then a flashing yellow telltale is shown on instrument panel. Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE . Remove the tire and wheel assembly. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION . Remove the rear wheelhouse panel liner. Refer to REAR WHEELHOUSE PANEL LINER REPLACEMENT .
1	Electric Park Brake Module Cable Refer to FASTENER CAUTION . Tighten  6 Nm (53 lb in)
2	Retainer Washer
3	Parking Brake Cable
4	Protector Parking Brake Cable
5	Retainer Washer (Qty: 2)
6	Parking Brake Rear Cable
