Rear Wheelhouse Panel Liner Replacement

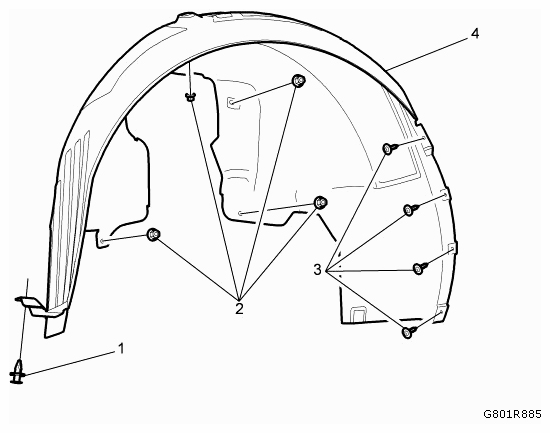

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the tire and wheel assembly. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION . |
|
| 1 | Rear Wheelhouse Liner Panel Retainer (Qty: 1) Procedure Use a BO-569-A lifter to aid in the removal of the rear wheelhouse panel liner retainer. Special Tools BO-569-A Plug Lifter For equivalent regional tools, refer to SPECIAL TOOLS . |
| 2 | Rear Wheelhouse Liner Panel Fastener (Qty: 4) Refer to FASTENER CAUTION . |
| 3 | Rear Wheelhouse Liner Panel Fastener (Qty: 4) |
| 4 | Rear Wheelhouse Liner Panel |
