Sunroof Window Front Seal Replacement - Front Window Rear

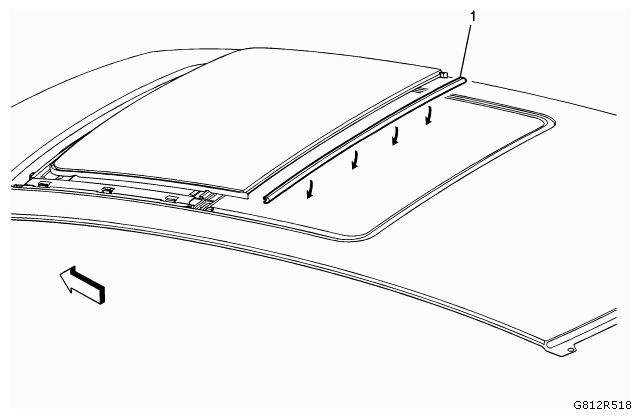

Fig 1: Installing Sunroof Window Front Seal

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Refer to GLASS AND SHEET METAL HANDLING WARNING . Preliminary Procedure  Remove the front sunroof window. Refer to SUNROOF WINDOW REPLACEMENT - FRONT .
1	Sunroof Window Front Seal Rear Procedure  Before removing the sunroof window, apply a double layer of masking tape around the perimeter of the painted surfaces. Remove the sunroof window weatherstrip by grasping the edge, pull downward to release it from the retainer. Clean around the inside surface of the window weatherstrip retainer with a 50/50 mixture of isopropyl alcohol and water by volume on a dampened lint free cloth. Position the sunroof window front seal rear in the center of the window retainer working outward the entire length. Ensure the window height. Refer to SUNROOF WINDOW HEIGHT AND OPENING FIT ADJUSTMENT . Inspect sunroof for proper operation.
