Sunroof Window Height and Opening Fit Adjustment

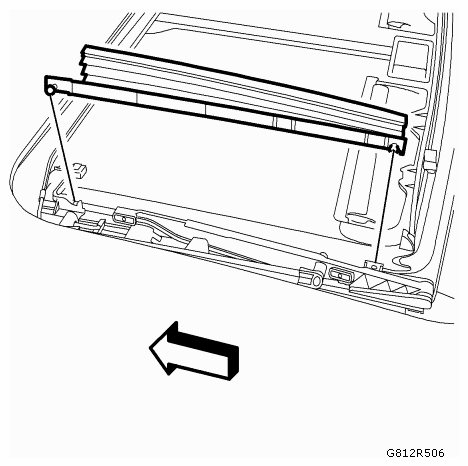

Remove the front air deflector covers (1) from left and right sides.

Fig 1: Identifying Front Air Deflector Covers
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Open the sunroof to the vent position.

Fig 2: Identifying Sunroof Vent Position
Courtesy of SAAB-SCANIA OF AMERICA, INC.

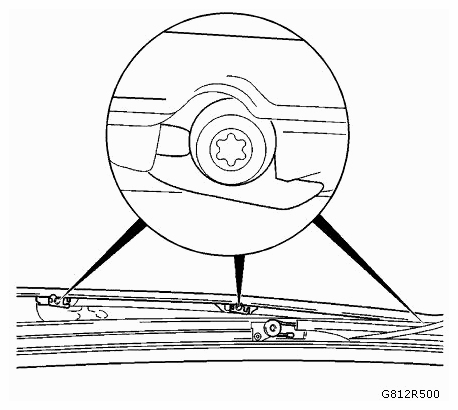

Loosen the sunroof window rear bolts.
Loosen the 4 bolts.
Open the sunroof to the half open position.
Loosen the front sunroof window.
Loosen the 2 bolts.
Close the sunroof.
NOTE: Tighten the window in the upper position.

Adjust the window.

Fig 3: Tightening Window In Upper Position
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Refer to FASTENER CAUTION .
Tighten the window rear bolts.

Tighten

Tighten the 4 bolts to 4 Nm (35 lb in).
Open the sunroof window until the rear part is in the vent position.
Tighten the sunroof window front bolts.
Tighten

Tighten the 2 bolts to 4 Nm (35 lb in).
Install the front air deflector covers (1) to left and right sides.
Close the sunroof.

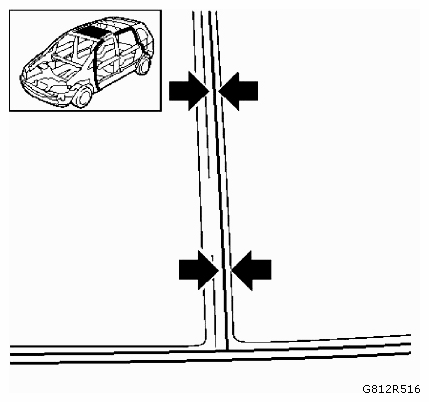

Inspect the gap 1.5-2 mm (0.06-0.08 in).
