Sunroof Switch Replacement

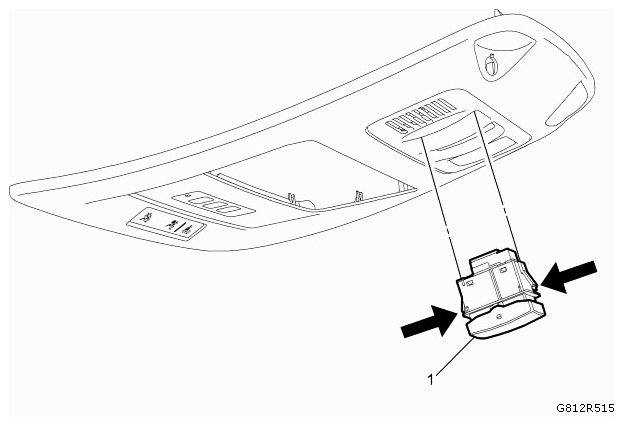

Fig 1: Removing Sunroof Switch

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure Remove the roof console assembly. Refer to ROOF CONSOLE REPLACEMENT (ASSEMBLY) or ROOF CONSOLE REPLACEMENT (FRAME) .
1	Sunroof Switch Procedure Unsnap the switch from the console.
