Sunroof Housing Drain Gutter Replacement

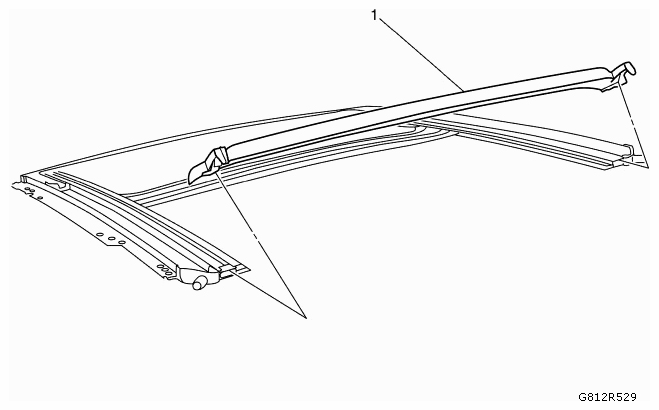

Fig 1: Identifying Sunroof Housing Drain Gutter

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure  Remove Sunroof Window. Refer to SUNROOF WINDOW REPLACEMENT - REAR  or SUNROOF WINDOW REPLACEMENT - FRONT . Remove the Sunroof Housing Assembly. Verify sunroof window height and opening fit adjustment. Refer to SUNROOF WINDOW HEIGHT AND OPENING FIT ADJUSTMENT .
1	Sunroof Housing Drain Gutter Procedure  Clip the sunroof housing drain gutter out of bracket on the left and right side.
