Rear Seat Body Side Inflatable Restraint Module Replacement

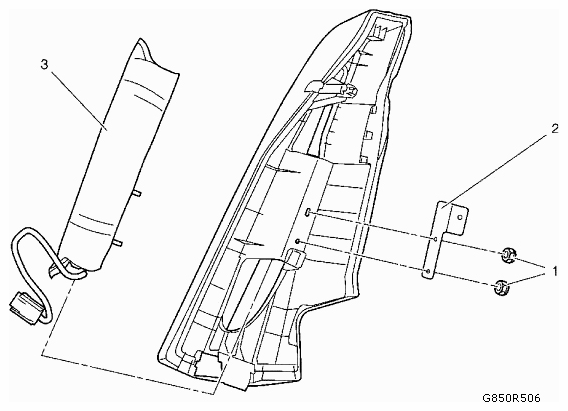

Fig 1: Identifying Rear Seat Body Side Inflatable Restraint Module, Bracket And Fastener

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
1	Rear Seat Body Side Inflatable Restraint Module Fastener Refer to FASTENER CAUTION . Tighten  9 Nm (80 lb in)
2	Rear Seat Body Side Inflatable Restraint Module Bracket
3	Rear Seat Body Side Inflatable Restraint Module
