Rear Side Door Window Regulator Replacement

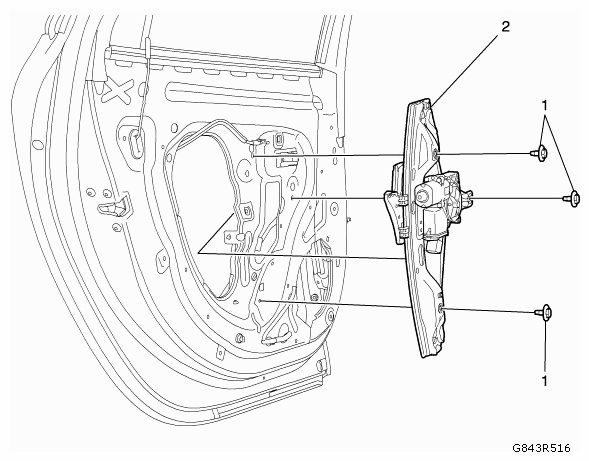

Fig 1: Identifying Rear Door Window Regulator And Fastener

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure  Remove the rear door water deflector. Refer to REAR SIDE DOOR WATER DEFLECTOR REPLACEMENT . Position the window approximately half way down in the door. To release the window retainer, push the window to the full up position and tape in place.
1	Rear Door Window Regulator Fastener (Qty: 3) Refer to FASTENER CAUTION . NOTE: Use new fasteners and screw locking. Tighten  9 Nm (80 lb in)
2	Rear Door Window Regulator Procedure  Disconnect the electrical connector.
