Rear Side Door Water Deflector Replacement

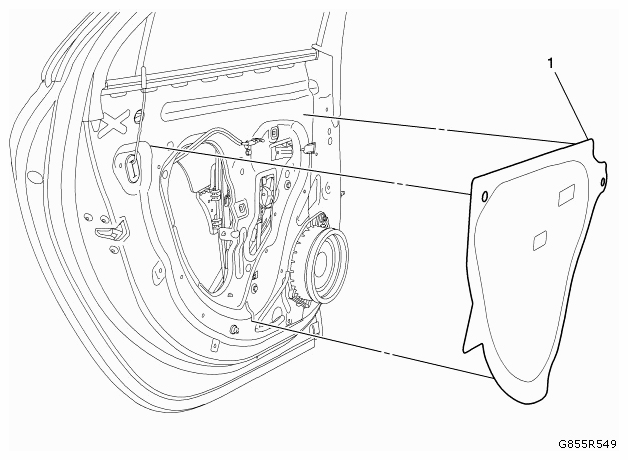

Fig 1: Identifying Rear Side Door Water Deflector

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure  Remove the rear door trim panel. See REAR SIDE DOOR TRIM PANEL, REPLACEMENT .
1	Rear Side Door Water Deflector Procedure  Remove bracket. Guide electrical connectors and door lock cable through the rear side door water deflector while removing it from the door.
