Rear Side Door Window Regulator Motor Replacement

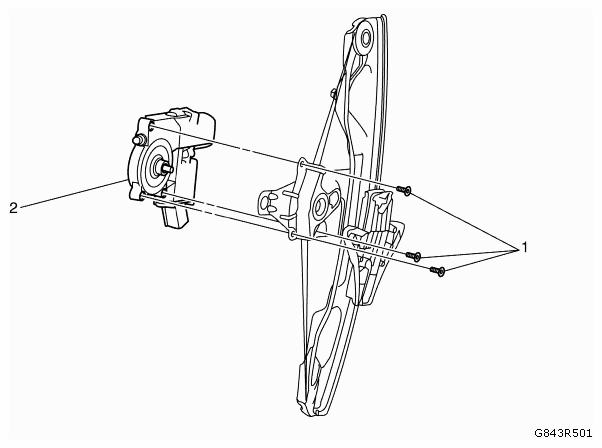

Fig 1: Identifying Rear Side Door Window Regulator Motor And Fastener

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure  Remove the rear side door window regulator. Refer to REAR SIDE DOOR WINDOW REGULATOR REPLACEMENT .
1	Rear Side Door Window Regulator Motor Fastener (Qty: 3) Refer to FASTENER CAUTION . Tighten  10 Nm (89 lb in)
2	Rear Side Door Window Regulator Motor
