Front Side Door Trim Panel Replacement

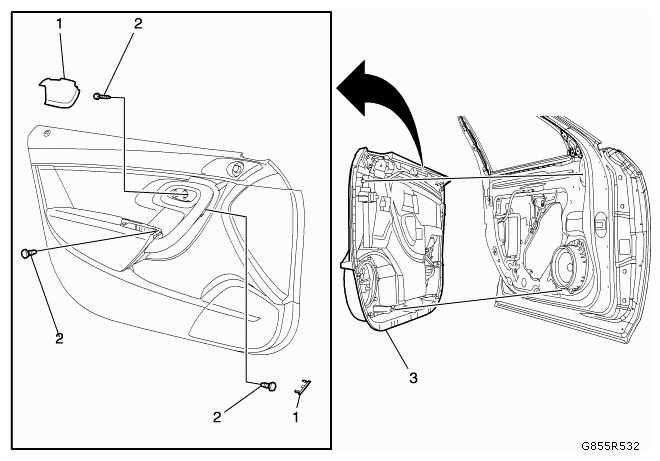

Fig 1: Identifying Front Side Door Trim Panel, Cover And Fastener

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure  Remove front side door window switch. Refer to FRONT SIDE DOOR WINDOW SWITCH REPLACEMENT . Remove the front side door outside rearview mirror filler. Refer to FRONT SIDE DOOR OUTSIDE REARVIEW MIRROR FILLER REPLACEMENT
1	Front Side Door Trim Panel Cover (Qty: 2) Procedure  Pull handle back to remove cap. Use a small flat bladed tool in the corner.
2	Front Side Door Trim Panel fastener (Qty: 3) Refer to FASTENER CAUTION . Tighten  1.8 Nm (15 lb ft)
3	Front Side Door Trim Panel Procedure  Release the front side door trim panel retainers (Qty: 7) Pull upwards on the door lock retainer cable to disengage. Disconnect the electrical connector.
