Front Side Door Window Regulator Motor Replacement

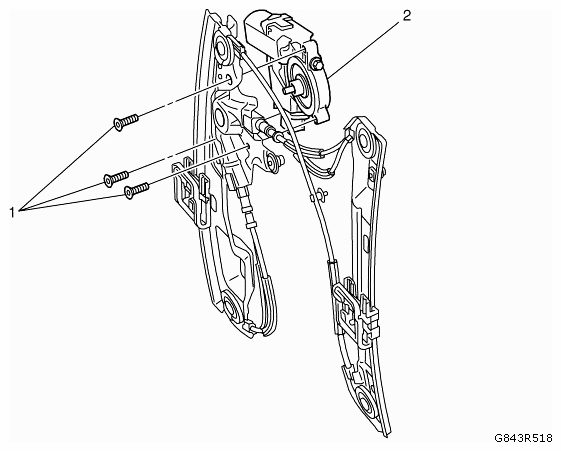

Fig 1: Identifying Front Side Door Window Regulator And Fastener

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure  Remove the front side door window regulator. Refer to FRONT SIDE DOOR WINDOW REGULATOR REPLACEMENT .
1	Front Side Door Window Regulator Fastener (Qty: 3) Refer to FASTENER CAUTION . Tighten  10 Nm (89 lb in)
2	Front Side Door Window Regulator
