Rear Side Door Trim Panel Replacement

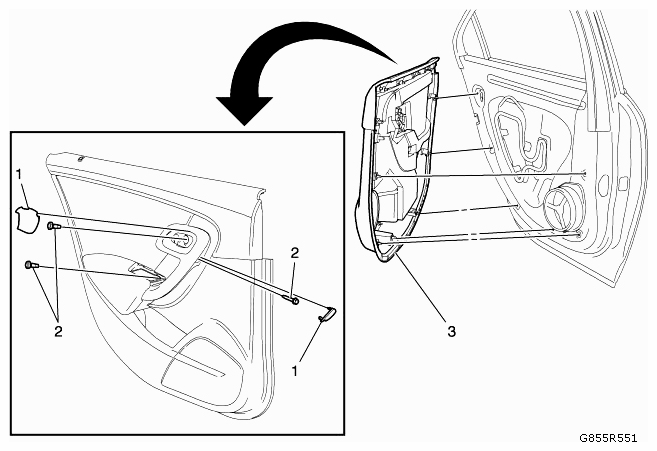

Fig 1: Identifying Rear Side Door Trim Panel, Cover And Fastener

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure  Remove Rear Side Door Window Switch. Refer to REAR SIDE DOOR WINDOW SWITCH REPLACEMENT .
1	Rear Side Door Trim Panel Cover (Qty: 2)
2	Rear Side Door Trim Panel fastener (Qty: 3) Refer to FASTENER CAUTION . Tighten  1, 8 Nm (15 lb in)
3	Rear Side Door Trim Panel Procedure  Release the rear side door trim panel retainers (Qty: 7) Pull upwards on the door lock retainer cable to disengage. Disconnect the electrical connector.
