Rear Compartment Side Trim Panel Replacement

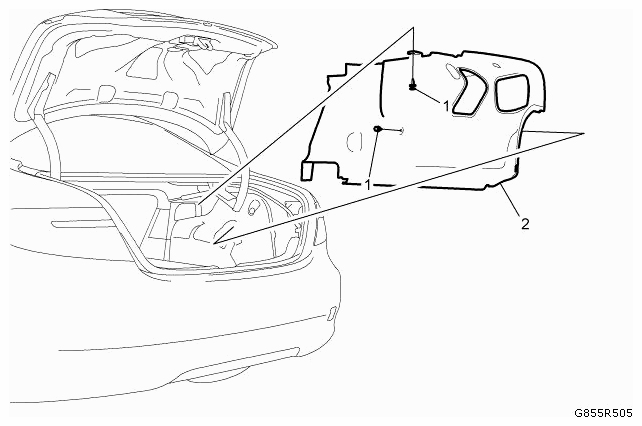

Fig 1: Identifying Rear Compartment Side Trim Panel And Retainer

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure  Folder the rear seats backrest on both sides. Remove the rear end trim finish panel replacement panel. Refer to REAR END TRIM FINISH PANEL REPLACEMENT . Remove the grocery hook. Refer to REAR COMPARTMENT CONVENIENCE HOOK REPLACEMENT (GROCERY)  or REAR COMPARTMENT CONVENIENCE HOOK REPLACEMENT (UMBRELLA) . Remove the courtesy lamp. Refer to LUGGAGE COMPARTMENT COURTESY LAMP, REPLACEMENT 4D .
1	Rear Compartment Side Trim Panel Retainer (Qty: 2)
2	Rear Compartment Side Trim Panel
