Luggage Compartment Courtesy Lamp, Replacement 4D

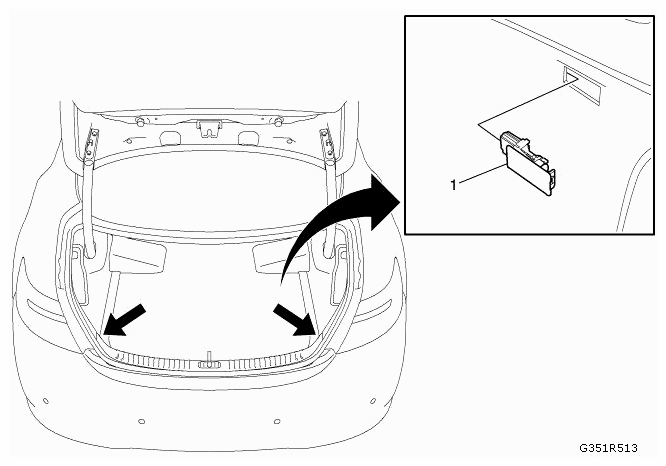

Fig 1: Locating Rear Compartment Courtesy Lamp
G09435215Courtesy of SAAB-SCANIA OF AMERICA, INC.
Callout Component Name
1 Rear Compartment Courtesy Lamp
Procedure
  1. Release and pull off the rear compartment courtesy lamp.
  2. Disconnect the electrical connector.
NOTE: Carefully use a flat-bladed tool, and release the compartment lamp.
