Rear Compartment Lid Inner Panel Trim Replacement

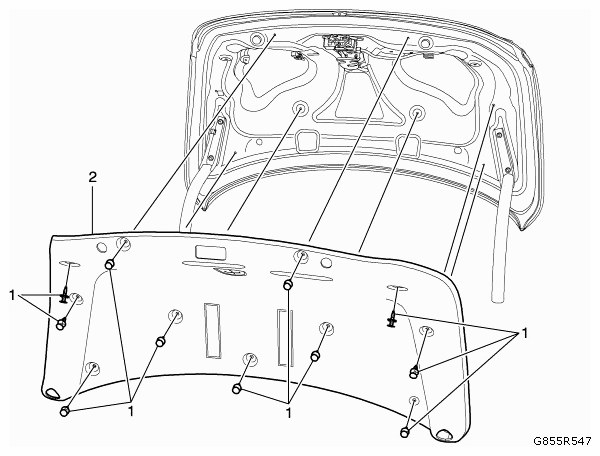

Fig 1: Identifying Rear Compartment Lid Inner Panel Trim And Retainer

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure  Remove the rear compartment lid latch cover. Refer to REAR COMPARTMENT LID LATCH COVER REPLACEMENT . Remove the rear compartment lid inside handle Refer to REAR COMPARTMENT LID INSIDE HANDLE REPLACEMENT .
1	Rear Compartment Lid Inner Panel Trim Retainer (Qty: 11) NOTE: Use the plug lifter  (BO-569-A) to aid in the removal of the rear compartment lid inner panel trim. Special Tools  BO-569-A  Plug Lifter For equivalent regional tools, refer to SPECIAL TOOLS
2	Rear Compartment Lid Inner Panel Trim
