Rear Compartment Lid Latch Cover Replacement
Rear Compartment Lid Latch Cover Replacement

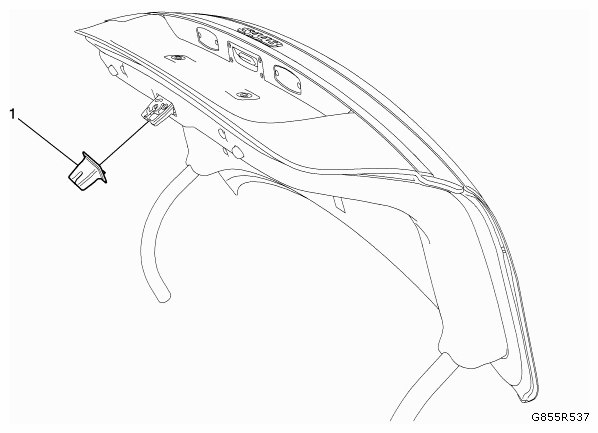

Fig 1: Identifying Rear Compartment Lid Latch Cover
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Callout
Component Name
1
Rear Compartment Lid Latch Cover
NOTE:
Use a small flat-bladed tool to pull and release the rear compartment lid latch cover.
