Parcel shelf, replacement

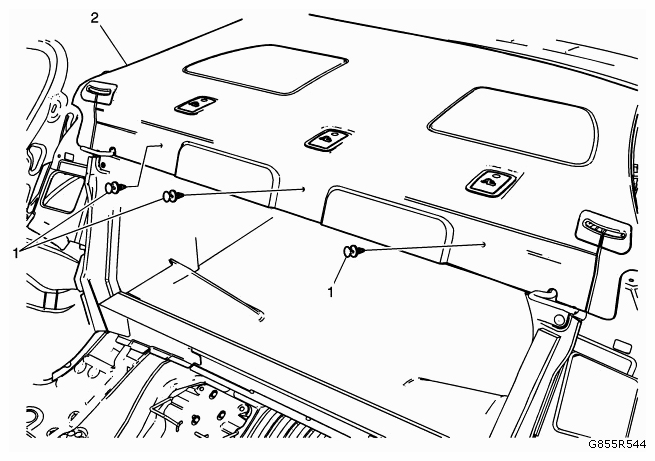

Fig 1: Identifying Parcel Shelf And Rear Window Panel Trim Retainer
G09435858Courtesy of SAAB-SCANIA OF AMERICA, INC.
Callout Component Name
Preliminary Procedure
  1. Fold down the rear seats.
  2. Remove the body lock pillar upper trim panel. Refer to C-PILLAR UPPER TRIM PANEL, REPLACEMENT .
1 Rear Window Panel Trim Retainer (Qty: 3)
2 Parcel shelf
Procedure
  1. Remove the seat belt guides and slide the belt through the slots in the panel.
  2. Disconnect the electrical connector.
