Front Floor Console Cover Replacement

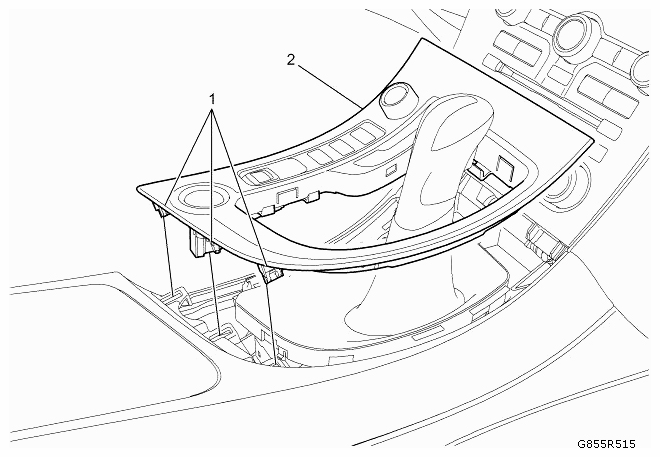

Fig 1: Identifying Front Floor Console Cover And Retainer

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
1	Front Floor Console Cover Retainer (Qty: 3) NOTE: Use a flat-bladed plastic trim tool to release the rear of the front floor console cover. Then release the front end by pushing down and back to release from the front floor upper console trim plate.
2	Front Floor Console Cover Disconnect the electrical connectors. Release the lever boot from front floor console cover. Transfer all necessary components.
