Glove compartment, Replacement

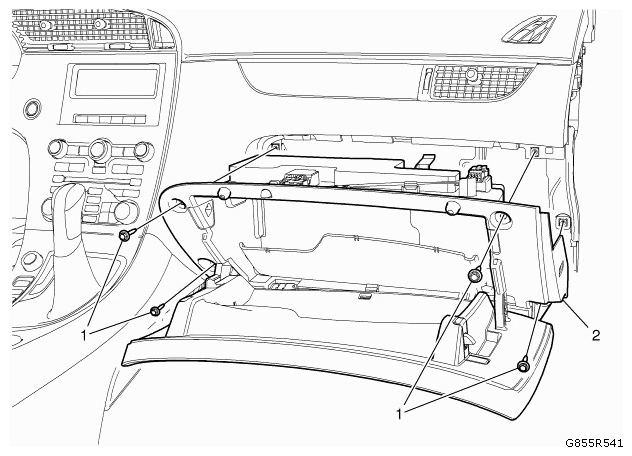

Fig 1: Identifying Instrument Panel Compartment Assembly And Fastener
G09435816Courtesy of SAAB-SCANIA OF AMERICA, INC.
Callout Component Name
Preliminary Procedure
Remove the right outer trim cover. Refer to INSTRUMENT PANEL OUTER TRIM COVER REPLACEMENT - RIGHT SIDE .
1 Instrument Panel Compartment Assembly Fastener (Qty: 4)
Refer to FASTENER CAUTION .
Procedure
Disconnect the electrical connectors.
2 Instrument Panel Compartment Assembly
