Instrument Panel Outer Trim Cover Replacement - Right Side

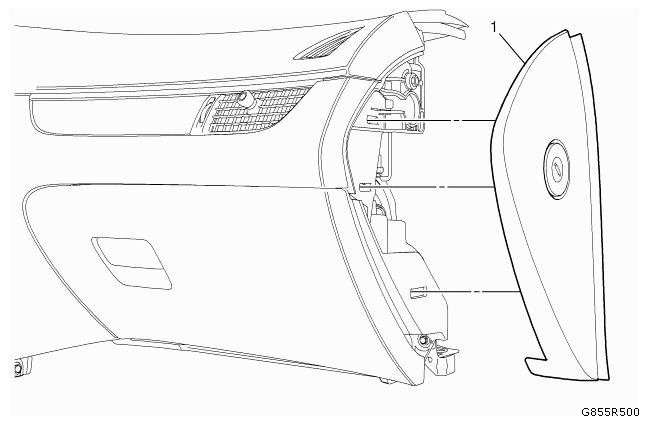

Fig 1: Identifying Instrument Panel Outer Trim Cover
G09435813Courtesy of SAAB-SCANIA OF AMERICA, INC.
Callout Component Name
1 Instrument Panel Outer Trim Cover
Procedure
  1. Remove the cover carefully with a suitable tool.
  2. Disconnect the electrical connector.
  3. Transfer any parts as needed.
