Front Side Door Outside Rearview Mirror Filler Replacement
Front Side Door Outside Rearview Mirror Filler Replacement

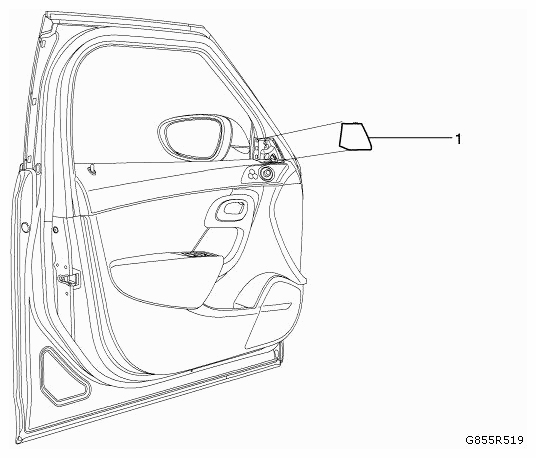

Fig 1: Identifying Front Side Door Outside Rearview Mirror Filler
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Callout
Component Name
1
Front Side Door Outside Rearview Mirror Filler
NOTE:
Use a small flat-bladed tool to remove the front side door outside rearview mirror filler.
