Tail Lamp, Replacement 4D

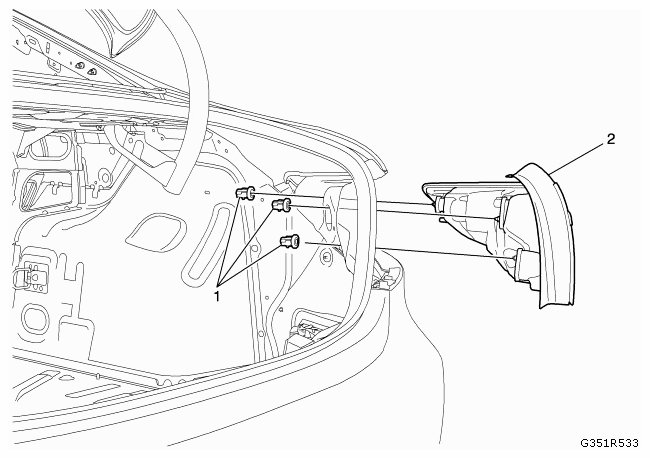

Fig 1: Identifying Tail Lamp And Fasteners
G09435213Courtesy of SAAB-SCANIA OF AMERICA, INC.
Callout Component Name
Preliminary Procedure
Open the service opening from the rear compartment side trim panel in order to expose the tail lamp fasteners.
1 Tail Lamp Fastener (Qty: 3)
Refer to FASTENER CAUTION .
NOTE: Hand tighten the fasteners only.
2 Tail Lamp
Procedure
  1. Pull the tail lamp assembly rearward.
  2. Disconnect the tail lamp electrical connector.
