Front Bumper Fascia Support Replacement (Left Side)

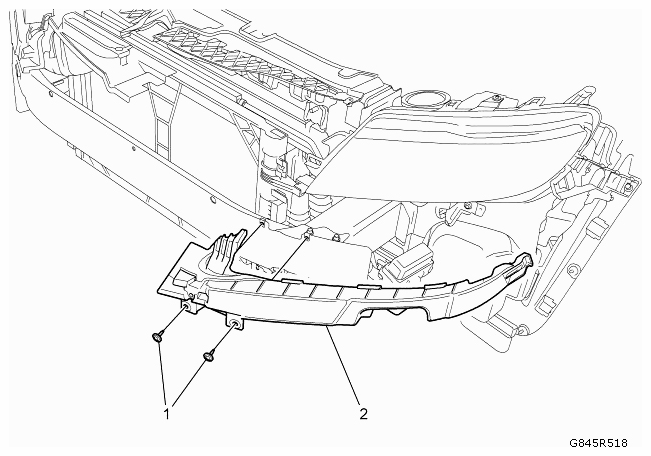

Fig 1: Identifying Front Bumper Fascia Support And Fastener

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure  Remove the front bumper fascia. Refer to FRONT BUMPER FASCIA REPLACEMENT .
1	Front Bumper Fascia Support Fastener (Qty: 2) Refer to FASTENER CAUTION .
2	Front Bumper Fascia Support NOTE: There is a guide on the inner side of the lamp and a hook on the guide that must be attached to the bracket on the outside of the lamp.
