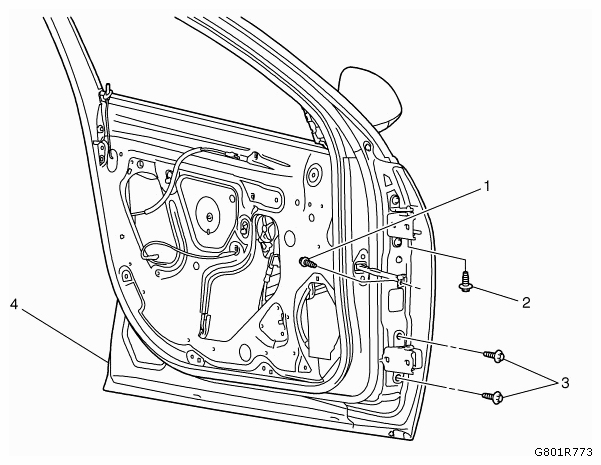

| 1 |
Front Side Door Check Link Fastener
Refer to FASTENER CAUTION
.
Procedure
- Disconnect the door electrical connector.
- Support the door before removing the hinge fastener.
Tighten
22 Nm (16 lb ft) |
| 2 |
Front Side Door Upper Hinge Fastener to Hinge
Tighten
25 Nm (18 lb ft) |
| 3 |
Front Side Door Hinge Fastener to Door (Qty: 2)
Tighten
25 Nm (18 lb ft) |
| 4 |
Front Door
Procedure
- With the aid of an assistant, remove the door.
- When replacing the door it is necessary to transfer all of the internal components.
- Adjust door. Refer to FRONT SIDE DOOR ADJUSTMENT .
- Tighten hinge fastener in following order: Front Side Door Upper Hinge Fastener, Front side door lower hinge lower fastener, Front side door lower hinge upper fastener.
|
