Theft Deterrent Alarm Replacement

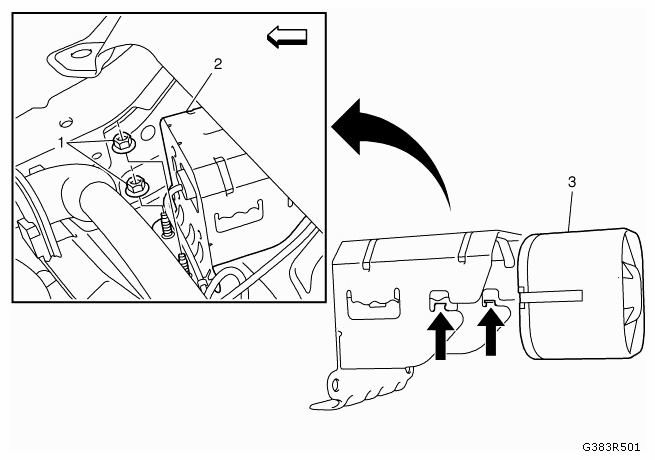

Fig 1: Identifying Theft Deterrent Alarm Assembly

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure Remove the plenum water deflector. Refer to PLENUM WATER DEFLECTOR REPLACEMENT .
1	Fastener Bracket Theft Deterrent Alarm (Qty: 2) Refer to FASTENER CAUTION . Tighten 9 Nm (79 lb in)
2	Theft Deterrent Alarm Assembly Procedure Disconnect the electrical connector. Release the cable clip out of the retainer.
3	Theft Deterrent Alarm Assembly Procedure Bend over the splice bars of the theft deterrent alarm bracket. Remove the theft deterrent alarm.
