Remote Control Door Lock Receiver Replacement

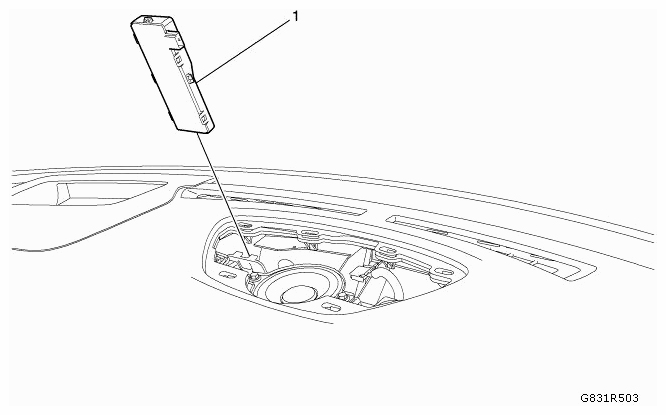

Fig 1: Identifying Remote Control Door Lock Receiver

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure  Remove the front speaker grille at the top of the instrument panel. Refer to RADIO FRONT SPEAKER GRILLE REPLACEMENT
1	Remote Control Door Lock Receiver Procedure  Unsnap the Remote Control Door Lock Receiver Assembly. Disconnect the electrical connector.
