Rear Side Door Lock Replacement

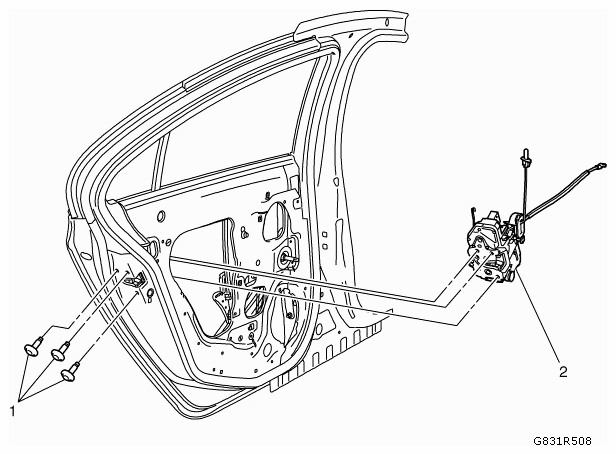

Fig 1: Identifying Rear Side Door Lock

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure Remove the rear side door water deflector. Refer to REAR SIDE DOOR WATER DEFLECTOR REPLACEMENT .
1	Rear Side Door Lock Fastener (Qty: 3) Tighten 9 Nm (80 lb in)
2	Rear Side Door Lock Procedure Release the shift linkage lever clip. Disconnect the door lock electrical connector.
