Rear Compartment Lid Release Switch Replacement

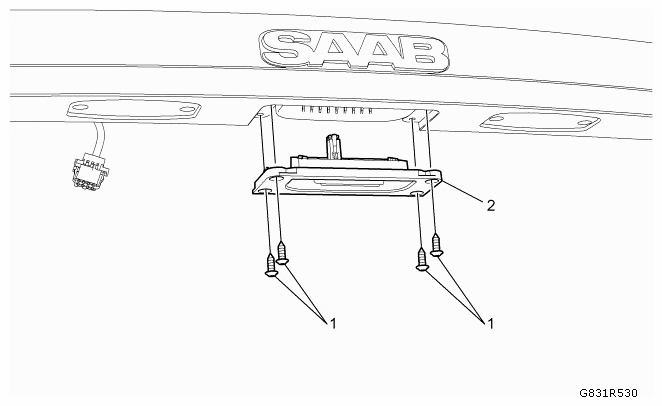

Fig 1: Identifying Rear Compartment Lid Release Switch And Fasteners

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure  Remove the rear compartment lid outside handle. Refer to Light ramp with external handle, tailgate, replace .
1	Rear Compartment Lid Release Switch Fasteners (Qty: 4) Refer to FASTENER CAUTION .
2	Rear Compartment Lid Release Switch Procedure  Disconnect the rear compartment lid release switch electrical connector.
