Light ramp with external handle, tailgate, replace

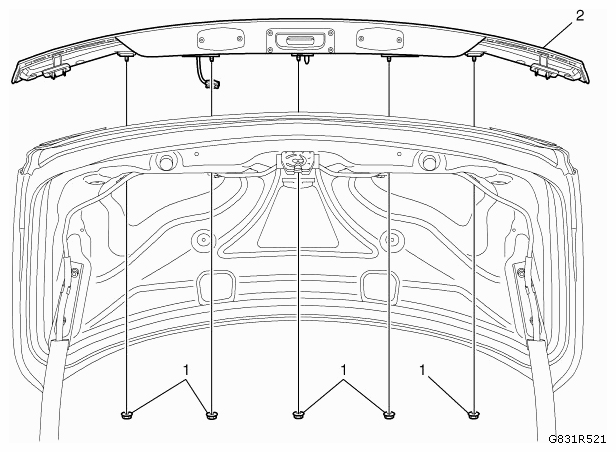

Fig 1: Identifying Rear Compartment Lid Outside Handle And Fastener

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure  Remove rear compartment lid inner panel trim. Refer to REAR COMPARTMENT LID INNER PANEL TRIM REPLACEMENT .
1	Rear Compartment Lid Outside Handle Fastener (Qty: 5) Refer to FASTENER CAUTION . Tighten  9 Nm (80 lb in)
2	Rear Compartment Lid Outside Handle Procedure  Tighten the outer clips with a pliers. Disconnect the electrical connector. Transfer components as necessary.
