Front Side Door Lock Replacement

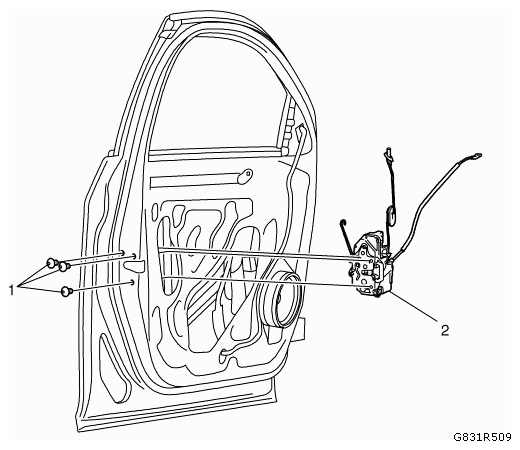

Fig 1: Identifying Front Side Door Lock

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure Remove the front side door outside handle bracket. Refer to FRONT SIDE DOOR OUTSIDE HANDLE BRACKET REPLACEMENT .
1	Front Side Door Lock Fastener (Qty: 3) Refer to FASTENER CAUTION . Tighten 9 Nm (80 lb in)
2	Front Side Door Lock Procedure Release the shift linkage lever clip. Disconnect the door lock electrical connector.
