Radio speaker amplifier, replace 4D

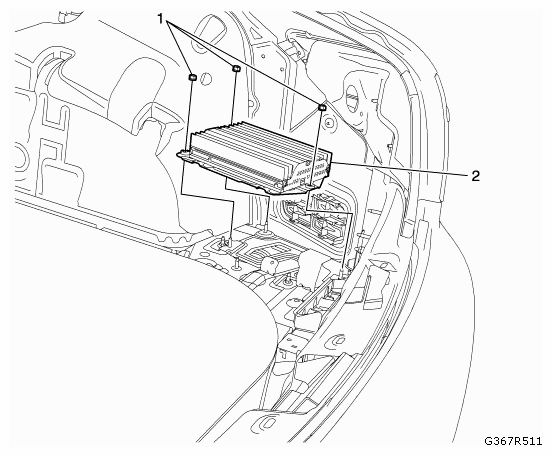

Fig 1: Identifying Radio Speaker Amplifier And Fastener

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure Remove the rear compartment side trim panel. Refer to REAR COMPARTMENT SIDE TRIM PANEL REPLACEMENT .
1	Radio Speaker Amplifier Fastener (Qty: 3) See FASTENER CAUTION . Tighten 6 Nm (53 lb in)
2	Radio Speaker Amplifier Procedure Disconnect the electrical connectors. For programming and set up information, refer to CONTROL MODULE REFERENCES .
