Digital radio antenna amplifier, replace 4D

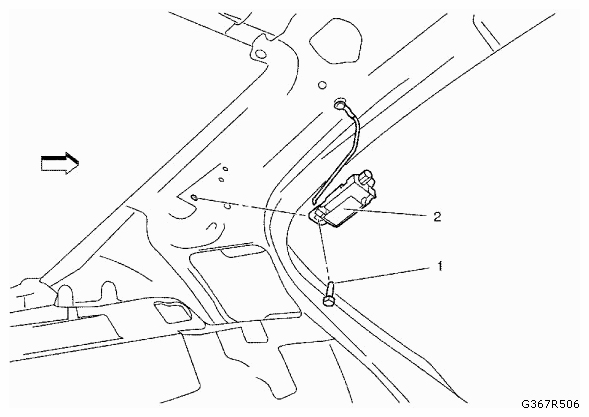

Fig 1: Identifying Digital Radio Antenna Amplifier And Fastener

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure  Remove the body lock pillar upper trim panel. Refer to C-PILLAR UPPER TRIM PANEL REPLACEMENT .
1	Digital radio antenna amplifier, bracket See FASTENER CAUTION . Procedure  Unscrew the digital radio transceiver module antenna fastener. Tighten  8 Nm (71 lb in)
2	Digital radio antenna amplifier Procedure  Disconnect the electrical connectors from the rear window. Remove the antenna for the digital radio antenna amplifier. For programming and set up information
