Front Object Alarm Sensor Replacement

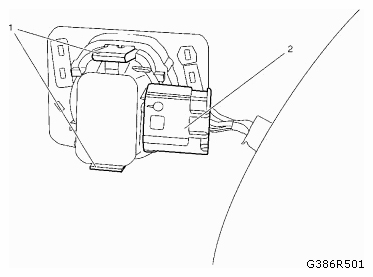

Fig 1: Identifying Front Object Alarm Sensor

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure  Remove the front bumper fascia. Refer to FRONT BUMPER FASCIA REPLACEMENT .
1	Front Object Alarm Sensor Retainer (Qty: 2) Procedure  Disconnect the front object alarm sensor electrical connector. Release the locking retainer from the front object alarm sensor support.
2	Front Object Alarm Sensor
